1630mm x 2500mm twin wire fence 868mm high rigidity fence panels Mesh 50mm x 200mm
| Wire Dia | Mesh Size | Panel Width | Panel Height | Post Height | Post Model |
| burying style | base style |
| 5/4/5mm | 50*100mm | | 1.03m | 1.4m | 1.2m | |
| 6/5/6mm | 50*200mm | 1.23m | 1.6m | 1.4m | Square |
| 8/6/8mm | 50*50mm | 1.53m | 2.0m | 1.7m | Peach |
| | 55*100mm | 1.73m | 2.2m | 1.9m | Round |
| | 55*200mm | 1.83m | 2.3m | 2.0m | Smallowtail |
| | 55*55mm | 2.03m | 2.5m | 2.2m | |
| Color | RAL6005,RAL9005,RAL9010,other color can make as your interesting |

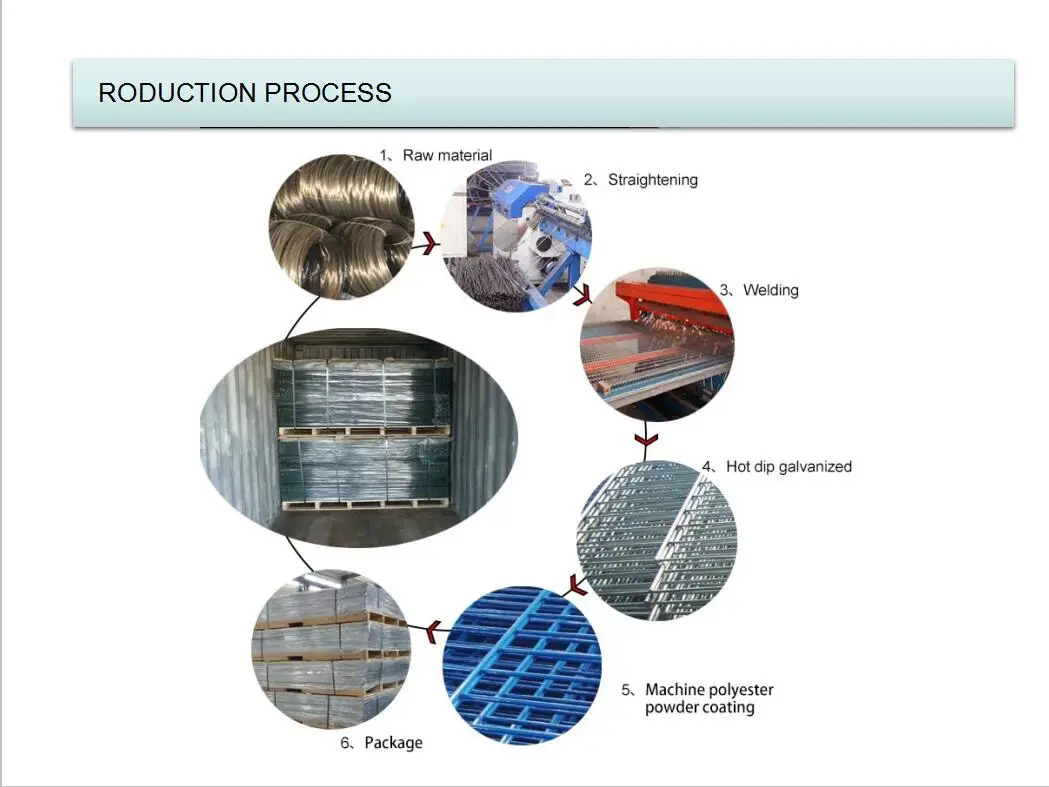

1: Black wire→Welding→Hot dipped galvanized→Powder coated/PVC coated
2: Black wire→Hot dipped galvanized→Welding→Powder coated/PVC coated
3: Black wire→Welding→Electric galvanized→Powder coated/PVC coated
4: Black wire→Electric galvanized→Welding→Powder coated/PVC coated
FAQ:
Q: Are you trading company or manufacturer ?
A: We are factory.Q: How long is your delivery time?A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ?is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q:How do we go to your
factory for visiting?
A:Please inform me your flight time, we will pick you up at our nearby airport, then drive to our factory for visiting.
Double wire mesh fence also called twin wire mesh fence, it is extremely rigid mesh fence system with a flat appearance, double horizontal wire 5mm or 6mm welded to 6mm, 8mm, vertical wire so often referred to as 656 fences and 868 mesh fence.T he double wire mesh fence often used as a premier fence for school playground, industry fencing where the conditions a rather strong mesh system is Indispensable. The double wire mesh fence takes high-quality low carbon steel wire as raw materials compared with the traditionalist fence it with rather stronger wire diameter 6mm/5mm/6mm and 8mm/6mm/8mm.
Twin Wire Mesh Fence Post Option
Twin wire mesh fence system usually take 40 x 60 x 2.00mm ,50x50x 2.00mm ,60x60x2.00mm post and
for heavy duty 868 twin wire mesh fence for stand heavier weight, we often recommend customer to take
80x60x2.5mm, 80x80x2.5mm,120*60*3mm post to stand premier heavy works.All of list size post required the fastener system for secure mesh fence panel together with a fence post, it generates so much
Works when customer install fence in local, so the new style post is peach size post which the post size is
50 x 70 and 70 x 100mm the special mesh fence post required nothing for fasteners such as bolts, nuts, clamps, bar etc its called peach post.

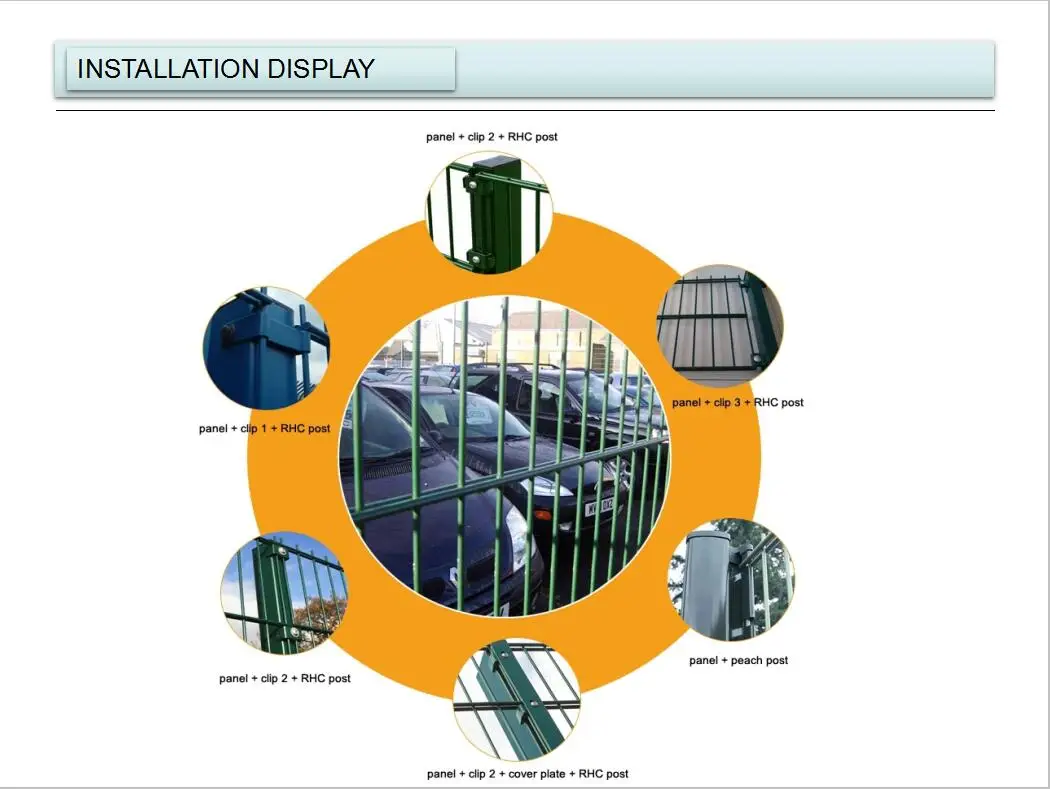

Fastener System and Accessories
Square and rectangular Post: Required Clamp Bar Bolts Nuts or Clips Bolts Nuts and Post Cap
Peach Post: Required nothing
Surface Treatment of Double Wire Mesh Fence
Double wire fence surface treatment available galvanized with PVC powder coating and galvanized with PVC powder painting the Galvanized level often regard as Electro Galvanized and Hot Dipped Galvanized
The electro galvanized level 20gram/square meter and hot dipped galvanized double mesh fence zinc level
Is 60gram-600gram/square meter .
Specification of Twin Wire Mesh Fence
Double wire mesh fence has a rather wider range height so at the daily using the standard mesh fence can stand almost all circumstance.
| Height X Length(mm) | Mesh Opening(mm) | Dia(mm) | Dia(mm) | Fence Length (mm) |
| 630x2500 | 50x200 | 8x2+6 | 6x2+5 | 1100mm |
| 830x2500 | 50x200 | 8x2+6 | 6x2+5 | 1300mm |
| 1030x2500 | 50x200 | 8x2+6 | 6x2+5 | 1500mm |
| 1230x2500 | 50x200 | 8x2+6 | 6x2+5 | 1700mm |
| 1430x2500 | 50x200 | 8x2+6 | 6x2+5 | 1900mm |
| 1530x2500 | 50x200 | 8x2+6 | 6x2+5 | 2000mm |
| 1630x2500 | 50x200 | 8x2+6 | 6x2+5 | 2100mm |
| 1730x2500 | 50x200 | 8x2+6 | 6x2+5 | 2200mm |
| 1830x2500 | 50x200 | 8x2+6 | 6x2+5 | 2300mm |
| 2030x2500 | 50x200 | 8x2+6 | 6x2+5 | 2500mm |
| 2230x2500 | 50x200 | 8x2+6 | 6x2+5 | 2700mm |
| 2430x2500 | 50x200 | 8x2+6 | 6x2+5 | 2900mm or 3000mm |
The double wire fence is a rigid yet unobtrusive mesh fencing system. It is often used as a perimeter fence for industrial or commercial premises and sports pitches where a strong mesh fencing system is required.
The inherent strength within the panels is gained by sandwiching a 6mm vertical wire between two 8mm horizontal wires. This ensures that the heavy-duty panels offer extremely high resistance to vandalism. 868 panels are then fixed to strong rolled hollow section posts using stainless steel security fixings and a full-length clamp strip. 868 is available 1030, 2030, 2430, 3060, 4060 and 4870mm high and a full range of single, double and sliding gates are available to match.
Posts: Set at 2520mm nominal centres.
Up to 2430mm high - 60 x 40 RHS
3060mm high - 80 x 40 RHS
4060mm high - 100 x 50 RHS
4870mm high - 120 x 60 RHS
Fixings: Posts nutserted to receive stainless steel
fixings and full length clamp strip.
Finish: Hot Dip Galvanised to BS EN ISO 1461 or
Galvanised & Polyester Polyester Powder Coated.
